Mechanical engineering

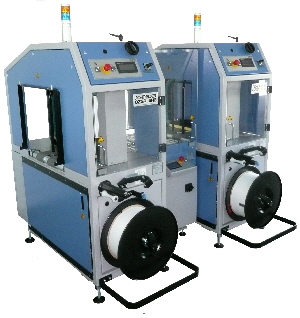

High-end cross strapping line made of the strapping machines SO 2004.1L and SO 2004.1Q

  • cross strapping without turning the bundles
  • for bundles of newspapers, magazines and commercial printers
  • strap capacity up to 40 single or cross straps and 20 parallel-cross straps per minute
  • bundle size L x W x H max. 510 x 500 x 400 mm
  • designs for 5, 6,35 or 7 mm strap
  • back - up function
  • minimal maintenance
  • energy saving, standby function

Dimensions in the data sheet of the strapping line, more details in the data sheets of the single machines as PDF - File:

SO 2004.1LQ             SO 2004.1L             SO 2004.1Q

SO 2004.1LQ SO 2004.1L
SO 2004.1Q

The mentioned special equipment in the data sheet is only a selection of possible options. Further equipment on inquiry!

Video SO 20041.LQ

Video

Hintergrund1

High-end cross strapping line made of the strapping machines SO 2004.1Q and one turn table V 88C

  • no stop while turning the bundle
  • for bundles of newspapers, magazines and commercial printers
  • strap capacity up to 40 single, parallel or cross straps and 20 parallel-cross straps per minute
  • bundle size with V 88C: L x W x H max. 500 x 340 x 400 mm or package diagonal max. 600 mm for cross strapping
  • designs for 5, 6,35 or 7 mm strap
  • 100% identical parts in both strapping machines
  • back - up function
  • minimal maintenance
  • energy saving, standby function

Dimensions in the data sheet of the strapping line, more details in the data sheets of the single machines as PDF - File:

SO 2004.1QV         SO 2004.1Q                 V 88C

SO 2004.1QV SO 2004.1Q V 88C

The mentioned special equipment in the data sheet is only a selection of possible options. Further equipment on inquiry!

Video SO 2004.1QV

Video

Hintergrund1

Compact cross strapping machine SO 1000.2K

  • cross strapping with integrated turn table
  • for bundles of newspapers, magazines and commercial printers
  • strap capacity up to 40 single straps, 20 parallel straps and 18 cross straps per minute
  • bundle size L x W x H max. 450 x 320 x 400 mm, package diagonal 560 mm for cross strapping
  • designs for 5, 6,35 or 7 mm strap
  • space saving
  • turning by servomotor
  • minimal maintenance
  • energy saving, standby function

more details in the data sheet as PDF - File:

SO 1000.2K

The mentioned special equipment in the data sheet is only a selection of possible options. Further equipment on inquiry!

Video SO 1000.2K

Video

Hintergrund1

Low cost cross strapping line made of the strapping machines
TI 01 und TM 01

  • best price - performance ratio
  • cross strapping without turning the package
  • Strap capacity up to 30 single or cross straps and 15 parallel-cross straps per minute
  • bundle size L x W x H max. 480 x 560 x 400 mm
  • strap width 5 mm
  • strap frame beside transport area
  • open design due to minimized pressure of bundle press and stoppers
  • minimal maintenance
  • the strapping line is expandable with various options like height scanning, back - up function, energy saving function or automatic tension

Dimensions in the data sheet of the strapping line, more details in the data sheets of the single machines as PDF - File:

TMI 01                            TI 01                        TM 01

TMI 01 TI 01 TM 01

The mentioned special equipment in the data sheet is only a selection of possible options. Further equipment on inquiry!

TMI 01
Video TMI 01

Video

Hintergrund1

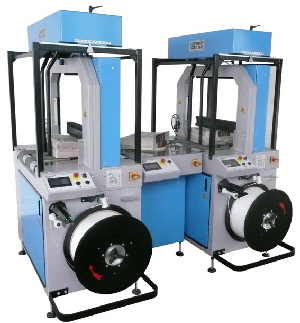

Low cost cross strapping line  made of the strapping machines
TM 01 and one ring turner RT 01

  • best price - performance ratio
  • for bundles, cartons and boxes
  • strap capacity up to 28 single, parallel or cross straps and 14 parallel-cross straps per minute
  • bundle size with L x W x H max. 500 x 500 x 500 mm (400 mm with press) or package diagonal max. 600 mm for cross strapping
  • strap width adjustable for 5, 6.35, 9 or 12 mm within a couple of minutes
  • the package gets turned by any desired angle to the left or right
  • no additional protection covers required
  • minimal maintenance
  • the strapping line is expandable with various options like height scanning, back - up function, energy saving function or automatic tension

Dimensions in the data sheet of the strapping line, more details in the data sheets of the single machines as PDF - File:

TM 01RT                      TM 01                        RT 01

TM 01 RT TM 01 RT 01

The mentioned special equipment in the data sheet is only a selection of possible options. Further equipment on inquiry!

Video TM 01 RT

Video
